NCE75ED120BT

The NCE75ED120BT is 1200V 75A Trench FS Gen.7 IGBT designed by NCE Power.

Product Overview

NCE Power

Datasheet Details

Part number	NCE75ED120BT
Manufacturer	NCE Power
File Size	1.49 MB
Description	1200V 75A Trench FS Gen.7 IGBT
Datasheet	NCE75ED120BT-NCEPower.pdf

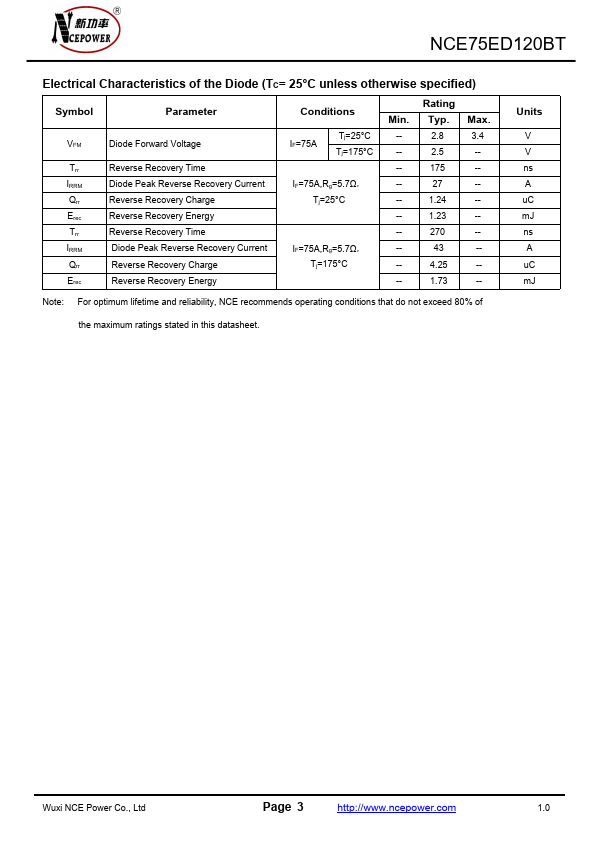

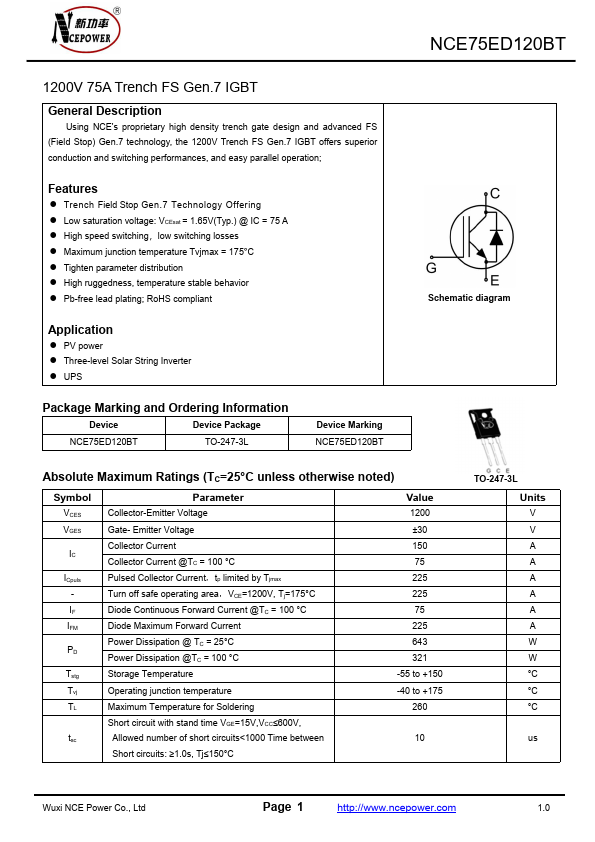

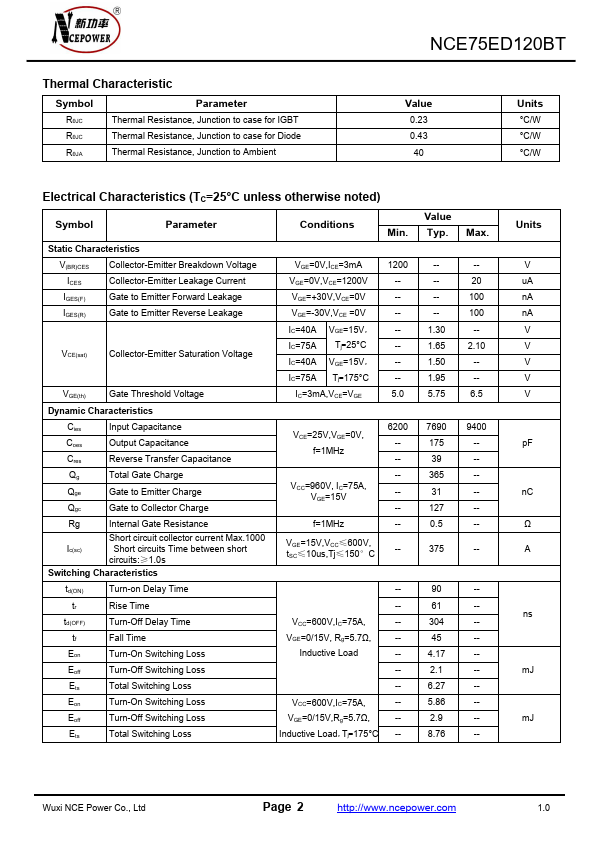

Additional preview pages of the NCE75ED120BT datasheet.

Product details

Description

Using NCE's proprietary high density trench gate design and advanced FS (Field Stop) Gen.7 technology, the 1200V Trench FS Gen.7 IGBT offers superior conduction and switching performances, and easy parallel operation;

Features

Trench Field Stop Gen.7 Technology Offering.
Low saturation voltage: VCEsat = 1.65V(Typ. ) @ IC = 75 A.
High speed switching，low switching losses.
Maximum junction temperature Tvjmax = 175°C.
Tighten parameter distribution.
High ruggedness, temperature stable behavior.
Pb-free lead plating; RoHS compliant.
