NCE20P45Q - P-Channel Enhancement Mode Power MOSFET

Description

The NCE20P45Q uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

It can be used in a wide variety of applications.

Features

  • VDS =-19V,ID =-45A RDS(ON) < 7mΩ @ VGS=-4.5V RDS(ON) < 9mΩ @ VGS=-2.5V RDS(ON) < 12mΩ @ VGS=-1.8V.
  • High density cell design for ultra low Rdson.
  • Fully characterized avalanche voltage and current.
  • Good stability and uniformity with high EAS.
  • Excellent package for good heat dissipation Schematic diagram Pin Assignment.

📥 Download Datasheet

Datasheet Details

Part number NCE20P45Q
Manufacturer NCE Power Semiconductor
File Size 304.34 KB
Description P-Channel Enhancement Mode Power MOSFET
Datasheet download datasheet NCE20P45Q Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NCE2025I N-Channel MOSFET VBsemi
NCE2025S N-Channel MOSFET VBsemi
NCE20H11 N-Channel 20V MOSFET VBsemi
NCE2302D N-Channel 20V MOSFET VBsemi
NCE0103 N-Channel 100V MOSFET VBsemi

Other Datasheets by NCE Power Semiconductor

Part Number Description
NCE20P09S P-Channel Enhancement Mode Power MOSFET
NCE20P70G P-Channel Enhancement Mode Power MOSFET
NCE20P85G P-Channel Enhancement Mode Power MOSFET
NCE20PK0302J P-Channel Enhancement Mode Power MOSFET
NCE20PK0302U P-Channel Enhancement Mode Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

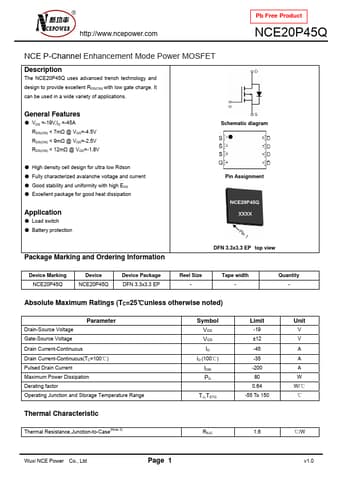

http://www.ncepower.com Pb Free Product NCE20P45Q NCE P-Channel Enhancement Mode Power MOSFET Description The NCE20P45Q uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications. General Features ● VDS =-19V,ID =-45A RDS(ON) < 7mΩ @ VGS=-4.5V RDS(ON) < 9mΩ @ VGS=-2.5V RDS(ON) < 12mΩ @ VGS=-1.8V ● High density cell design for ultra low Rdson ● Fully characterized avalanche voltage and current ● Good stability and uniformity with high EAS ● Excellent package for good heat dissipation Schematic diagram Pin Assignment Application ● Load switch ● Battery protection Package Marking and Ordering Information DFN 3.3x3.3 EP top view Device Marking NCE20P45Q Device NCE20P45Q Device Package DFN 3.3x3.
