TMR7302-100E, TMR7302-050E, Integrated Current Sensor

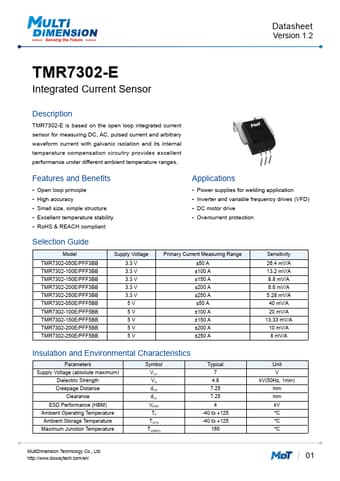

Datasheet Version 1.2 TMR7302-E Integrated Current Sensor Description TMR7302-E is based on the open loop integrated current sensor for measuring DC

Features

* Open loop principle
* High accuracy
* Small size, simple structure
* Excellent temperature stability
* RoHS & REACH compliant Selection Guide Model TMR7302-050E/PFF3BB TMR7302-100E/PFF3BB TMR7302-150E/PFF3BB TMR7302-200E/PFF3BB TMR7302-250E/PFF3BB TMR7302-0

Applications

* Power supplies for welding application
* Inverter and variable frequency drives (VFD)
* DC motor drive
* Overcurrent protection Primary Current Measuring Range ±50 A ±100 A ±150 A ±200 A ±250 A ±50 A ±100 A ±150 A ±200 A ±250 A Sensitivity 26.4 mV/A 13.2 mV/A 8.8
