TMR7303-010D Miniture Current Sensor

TMR7303-010D Description

Datasheet Version 1.5 TMR7303-D/P1 Unibody, Miniture Current Sensor .
TMR7303-D/P1 is based on tunnel magnetoresistance (TMR) technology with high signal-to-noise ratio (SNR) and high sensitivity for measuring DC, AC, pu.

TMR7303-010D Features

* Tunneling magnetoresistance (TMR) technology
* Fast response time, high bandwidth (≥ 500 kHz)
* Low noise, low power consumption
* Excellent temperature stability

TMR7303-010D Applications

* Photovoltaic inverter
* Switching power supplies
* Inverter and variable frequency drives (VFD)
* DC motor drive
* Power supplies for welding application Selection Guide Model TMR7303-010D/P1 TMR7303-016D/P1 TMR7303-020D/P1 TMR7303-032D/P1 TMR7303-040D/P1 T

📥 Download Datasheet

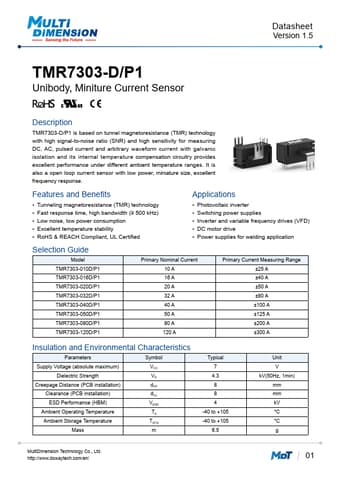

Preview of TMR7303-010D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TMR7303-010D
Manufacturer
MultiDimension
File Size
1.83 MB
Datasheet
TMR7303-010D-MultiDimension.pdf
Description
Miniture Current Sensor
