FSD-TMR1005 - Rotational Speed Sensor

MultiDimension

The FSD-TMR1005 by MultiDimension is a Rotational Speed Sensor. Below is the official datasheet preview.

📥 Download Datasheet

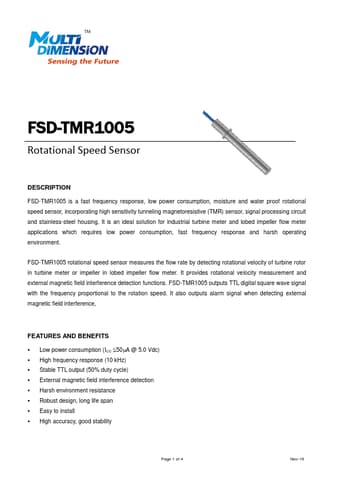

FSD-TMR1005 Rotational Speed Sensor by MultiDimension - Datasheet Preview — Official preview page of the **FSD-TMR1005** Rotational Speed Sensor datasheet (MultiDimension).

Datasheet Details

Part number	FSD-TMR1005
Manufacturer	MultiDimension
File Size	411.20 KB
Description	Rotational Speed Sensor
Datasheet	FSD-TMR1005-MultiDimension.pdf
Additional preview pages of the FSD-TMR1005 datasheet.

FSD-TMR1005 Product details

Description

FSD-TMR1005 is a fast frequency response, low power consumption, moisture and water proof rotational speed sensor, incorporating high sensitivity tunneling magnetoresistive (TMR) sensor, signal processing circuit and stainless-steel housing.

Features

Low power consumption (ICC 50A @ 5.0 Vdc).
High frequency response (10 kHz).
Stable TTL output (50% duty cycle).
External magnetic field interference detection.
Harsh environment resistance.
Robust design, long life span.
Easy to install.
High accuracy, good stability Page 1 of 4 Nov-19 FSD-TMR1005 Rotational Speed Sensor.
