FSD176MRT - Green-Mode Fairchild Power Switch

Fairchild Semiconductor

The FSD176MRT by Fairchild Semiconductor is a Green-Mode Fairchild Power Switch. Below is the official datasheet preview.

📥 Download Datasheet

FSD176MRT Green-Mode Fairchild Power Switch by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **FSD176MRT** Green-Mode Fairchild Power Switch datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	FSD176MRT
Manufacturer	Fairchild Semiconductor
File Size	699.30 KB
Description	Green-Mode Fairchild Power Switch
Datasheet	FSD176MRT_FairchildSemiconductor.pdf

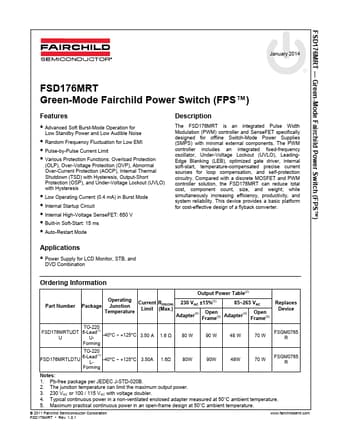

Additional preview pages of the FSD176MRT datasheet.

FSD176MRT Product details

Description

The FSD176MRT is an integrated Pulse Width Modulation (PWM) controller and SenseFET specifically designed for offline Switch-Mode Power Supplies (SMPS) with minimal external components.

Features

Advanced Soft Burst-Mode Operation for Low Standby Power and Low Audible Noise.
Random Frequency Fluctuation for Low EMI.
Pulse-by-Pulse Current Limit.
Various Protection Functions: Overload Protection (OLP), Over-Voltage Protection (OVP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown (TSD) with Hysteresis, Output-Short Protection (OSP), and Under-Voltage Lockout (UVLO) with Hysteresis.
Low Operating Current (0.4 mA) in Burst Mode.
Internal Sta.
