MTB33N10E Datasheet (Motorola)

MTB33N10E, TMOS POWER FET

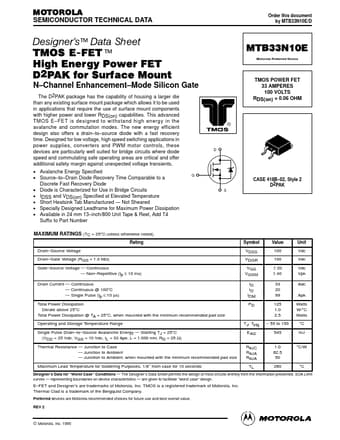

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MTB33N10E/D ™ Data Sheet TMOS E-FET.™ High Energy Power FET D2PAK for Surface Mount Designer's MTB33N10E Motorola Preferred Device N Channel Enhancement Mode Silicon Gate The D2PAK package has the capability of housing a larger die than any existing surface mount package which allows it to be used in applications that require the use of surface mount components with higher power and lower RDS(on) capabilities.

This

MTB33N10E Features

* t specified. The resistive switching time variation versus gate resistance (Figure 9) shows how typical switching performance is affected by the parasitic circuit elements. If the parasitics were not present, the slope of the curves would maintain a value of unity regardless of the switching speed.
