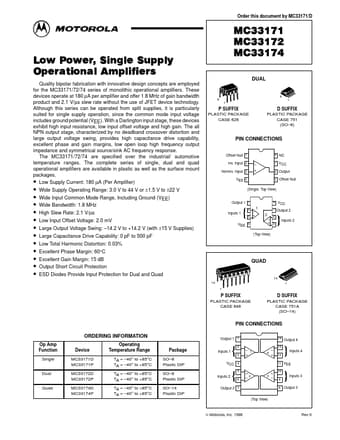

MC33171 - (MC33172/MC33174) Low Power / Single Supply Operational Amplifiers

Motorola

Datasheet Details

Part number	MC33171
Manufacturer	Motorola
File Size	217.49 KB
Description	(MC33172/MC33174) Low Power / Single Supply Operational Amplifiers
Datasheet	MC33171_Motorola.pdf

PERFORMANCE

Although the bandwidth, slew rate, and settling time of the voltage to approach within millivolts of VEE. For sink currents MC33171/72/74 amplifier family is similar to low power op (> 0.4 mA), diode D3 clamps the voltage across R4. Thus the amp products utilizing JFET input devices, these amplifiers negative swing is limited by the saturation voltage of Q15, offer additional advantages as a result of the PNP transistor plus the forward diode drop of D3 (≈VEE +1.0 V). Therefore differential inpu.
