MC33151, MC34151 - High Speed Dual MOSFET Drivers

ON Semiconductor

📥 Download Datasheet

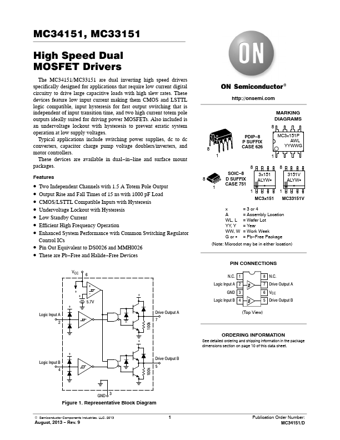

MC33151 Datasheet Preview — This datasheet PDF includes multiple part numbers: MC33151, MC34151. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MC33151, MC34151
Manufacturer	ON Semiconductor
File Size	252.92 KB
Description	High Speed Dual MOSFET Drivers
Datasheet	MC34151_ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MC33151, MC34151. Please refer to the document for exact specifications by model.

MC33151 Product details

Description

Output Stage The MC34151 is a dual inverting high speed driver specifically designed to interface low current digital circuitry with power MOSFETs.This device is constructed with Schottky clamped Bipolar Analog technology which offers a high degree of performance and ruggedness in hostile industrial environments.Input Stage The Logic Inputs have 170 mV of hysteresis with the input threshold centered at 1.67 V.The input thresholds are insensitive to VCC making this device directly compatible

Features

thresholds are crossed. The inputs are designed to accept a signal amplitude ranging from ground to VCC. This allows the output of one channel to directly drive the input of a second channel for master.
slave operation. Each input has a 30 kΩ pull.
down resistor so that an unconnected open input will cause the associated Drive Output to be in a known high state. Each totem pole Drive Output is capable of sourcing and sinking up to 1.5 A with a typical ‘on’ resistance of 2.4 Ω at.
