MC14LC5447 - Calling Line Identification(CLID) Receiver with Ring Detector

Product Overview

Motorola

Datasheet Details

Part number	MC14LC5447
Manufacturer	Motorola
File Size	215.36 KB
Description	Calling Line Identification(CLID) Receiver with Ring Detector
Datasheet	MC14LC5447 Datasheet

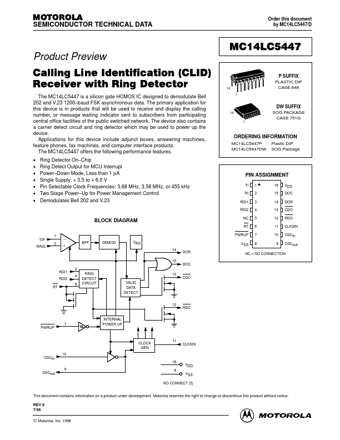

Additional preview pages of the MC14LC5447 datasheet.

Product details

Description

OSC Startup (CLKSIN = 1; 3.579 MHz XTAL) Power Up Low to FSK (Setup Time) Carrier Detect Acquisition Time End of Data to Carrier Detect High Symbol tDOSC tSUPD tDAQ tDCH Min 15 8 Typ 2 14 Max Unit ms ms ms ms TIMING DIAGRAM 0.5 SECOND 0.5 SECOND 2 SECONDS RI 0101 1 DATA RT THRESHOLD TO KEEP PART ON RDO tSUPD PWRUP tDAQ CDO tDCH DOC COOKED DATA DOR tDOSC RAW DATA OSC CLOCK 3.58 MHz, 3.6864 MHz, OR

Features

Ring Detector On.
Chip Ring Detect Output for MCU Interrupt Power.
Down Mode, Less than 1 µA Single Supply: + 3.5 to + 6.0 V Pin Selectable Clock Frequencies: 3.68 MHz, 3.58 MHz, or 455 kHz Two Stage Power.
Up for Power Management Control Demodulates Bell 202 and V.23 MC14LC5447 16 1 P SUFFIX.
