MC10ELT24 - TTL to Differential ECL Translator

Product Overview

Motorola

📥 Download Datasheet

MC10ELT24 TTL to Differential ECL Translator by Motorola - Datasheet Preview — Datasheet preview – MC10ELT24

Datasheet Details

Part number	MC10ELT24
Manufacturer	Motorola
File Size	81.70 KB
Description	TTL to Differential ECL Translator
Datasheet	MC10ELT24 Datasheet
Note	This datasheet PDF includes multiple part numbers: MC10ELT24, MC100ELT24. Please refer to the document for exact specifications by model.

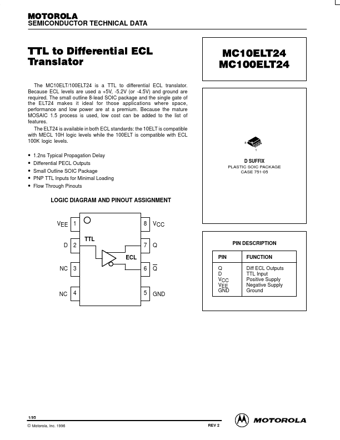

Additional preview pages of the MC10ELT24 datasheet.

Product details

Description

PIN Q D VCC VEE GND FUNCTION Diff ECL

Features

The ELT24 is available in both ECL standards: the 10ELT is compatible with MECL 10H logic levels while the 100ELT is compatible with ECL 100K logic levels.
1.2ns Typical Propagation Delay.
Differential PECL Outputs.
Small Outline SOIC Package.
PNP TTL Inputs for Minimal Loading.
Flow Through Pinouts LOGIC.
