MC10ELT21 - Differential PECL to TTL Translator

Product Overview

Motorola

Part number	MC10ELT21
Manufacturer	Motorola
File Size	80.95 KB
Description	Differential PECL to TTL Translator
Datasheet	MC10ELT21 Datasheet
Note	This datasheet PDF includes multiple part numbers: MC10ELT21, MC100ELT21. Please refer to the document for exact specifications by model.

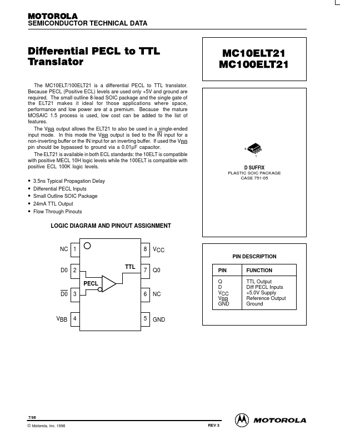

Additional preview pages of the MC10ELT21 datasheet.

The VBB output allows the ELT21 to also be used in a single-ended input mode. In this mode the VBB output is tied to the IN input for a non-inverting buffer or the IN input for an inverting buffer. If used the VBB pin should be bypassed to ground via a 0.01µF capacitor. The ELT21 is available in both ECL standards: the 10ELT is compatible with positive MECL 10H logic levels while the 100ELT is compatible with positive ECL 100K logic levels.
3.5ns Typical Propagation Delay.
