56F803 - 16-bit Hybrid Controller

Motorola

📥 Download Datasheet

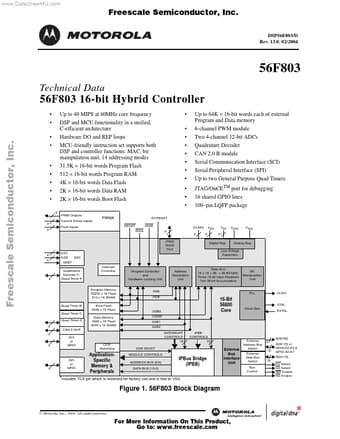

56F803 Datasheet Preview — Preview of 56F803 PDF

Datasheet Details

Part number: 56F803
Manufacturer: Motorola
File Size: 0.95 MB
Datasheet: 56F803_Motorola.pdf
Description: 16-bit Hybrid Controller

56F803 Product details

Description

Four General Purpose Quad Timers: Timer A (sharing pins with Quad Dec0), Timers B &C without external pins and Timer D with two pins CAN 2.0 B module with 2-pin ports for transmit and receive Serial Communication Interface (SCI) with two pins (or two additional GPIO lines) Serial Peripheral Interface (SPI) with configurable 4-pin port (or four additional GPIO lines) Computer Operating Properly (COP) Watch

Features

1.1.1.
Digital Signal Processing Core Efficient 16-bit 56800 family hybrid controller engine with dual Harvard architecture As many as 40 Million Instructions Per Second (MIPS) at 80MHz core frequency Single-cycle 16 × 16-bit parallel Multiplier-Accumulator (MAC) Two 36-bit accumulators, including extension bits 16-bit bidirectional barrel shifter Parallel instruction set with unique DSP addressing modes Hardware DO and REP loops Three internal a.
