56F8011 - (56F8011 / 56F8013) 16-Bit Digital Signal Controller

Motorola Semiconductor

📥 Download Datasheet

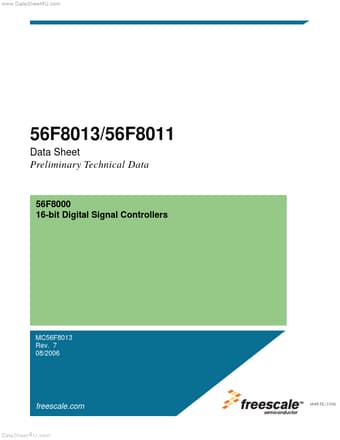

56F8011 Datasheet Preview — Preview of 56F8011 PDF

Datasheet Details

Part number	56F8011
Manufacturer	Motorola Semiconductor
File Size	2.29 MB
Description	(56F8011 / 56F8013) 16-Bit Digital Signal Controller
Datasheet	56F8011_MotorolaSemiconductor.pdf

56F8011 Product details

Description

of Change Rev.2 Rev.3 Rev.4 Rev.5 Rev.6 Please see http://www.freescale.com for the most current Data Sheet revision.56F8013/56F8011 Data Sheet, Rev.7 2 Freescale Semiconductor Preliminary DataSheet 4 U .com www.DataSheet4U.com Document Revision History Version History Rev.7 Description of Change Added information on automotive device for 56F8013. Added information on 56F8011device; edited to indicate differences in 56F8013 and 56F8011 devices.Updated values for VEI3.3 and VEI2

Features

in italics describe the 56F8011 device.
Up to 32 MIPS at 32MHz core frequency.
DSP and MCU functionality in a unified, C-efficient architecture.
56F8013 device offers 16KB Program Flash 56F8011 device offers 12KB Program Flash.
56F8013 device offers 4KB Unified Data/Program RAM 56F8011 device offers 2KB Unified Data/Program RAM.
One 6-channel PWM module.
Two 3-channel 12-bit ADCs.
One Serial Communication Interface (SCI) with LIN sl.
