2N915 Datasheet (Motorola) - NPN silicon annular transistor

2N915, NPN silicon annular transistor

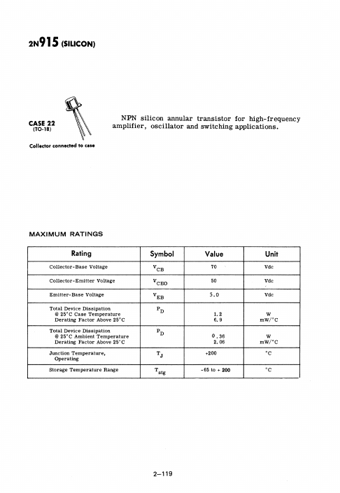

2N915 CASE 22, STYLE 1 TO-18 (TO-206AA) GENERAL PURPOSE TRANSISTOR NPN SILICON Refer to 2N3946 for graphs.

MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage @Total Device Dissipation TA = 25°C Derate above 25°C @Total Device Dissipation Tq = 25°C Derate above 25°C @Total Power Dissipation + 100°C Case Operating and Storage Temperature Temperature Range Symbol v CEO VCBO VEBO pd pd Pd Tj, Tstg Value 50 70 5.0 0.36 2.05 1.2 6.81 0.68 - 65 to + 200 Un
