2N2476 - NPN Transistor

2N2476 Description

2N2476 (SILICON) 2N2477 NPN silicon annular transistors designed for highspeed, low-power saturated switching applications.CASE 31 (TO-5) Collecto.

2N2476 Applications

* CASE 31 (TO-5) Collector connected td case MAXIMUM RATINGS Rating Symbol Collector-Emitter Voltage VCEO Collector-Base Voltage VCB Emitter-Base Voltage VEB Total Device Dissipation @ TA = 25° C PD Derate above 25° C Total Device Dissipation @ T C = 25° C PD Derate above 25° C Operat

📥 Download Datasheet

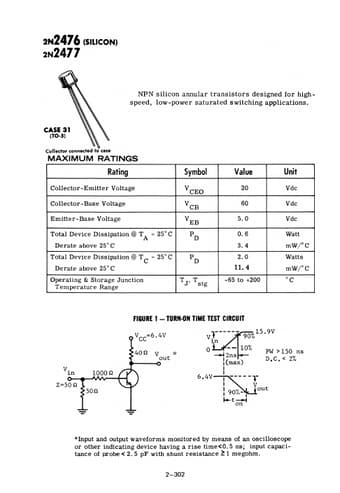

Preview of 2N2476 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N2476
Manufacturer
Motorola
File Size
107.63 KB
Datasheet
2N2476-Motorola.pdf
Description
NPN Transistor
