1N5915B Zener Voltage Regulator Diodes

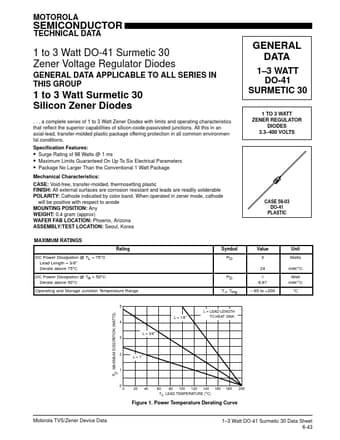

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 1 to 3 Watt DO-41 Surmetic 30 Zener Voltage Regulator Diodes GENERAL DATA APPLICABLE TO ALL SERIES IN THIS GROUP 1 to 3 Watt Surmetic 30 Silicon Zener Diodes . . . a complete series of 1 to 3 Watt Zener Diodes with limits and operating characteristics that reflect the superior capabilities of silicon-oxide-passivated junctions. All this in an axial-lead, transfer-molded plastic package offering protection in all common environmental conditions. Specification.

1N5915B Features

* Surge Rating of 98 Watts @ 1 ms

* Maximum Limits Guaranteed On Up To Six Electrical Parameters

* Package No Larger Than the Conventional 1 Watt Package Mechanical Characteristics: CASE: Void-free, transfer-molded, thermosetting plastic FINISH: All external surfaces are cor
