1N5917B - Zener Voltage Regulator Diodes

Download the 1N5917B datasheet PDF. This datasheet also covers the 1N5913B variant, as both devices belong to the same zener voltage regulator diodes family and are provided as variant models within a single manufacturer datasheet.

Features

  • Surge Rating of 98 Watts @ 1 ms.
  • Maximum Limits Guaranteed On Up To Six Electrical Parameters.
  • Package No Larger Than the Conventional 1 Watt Package Mechanical Characteristics: CASE: Void-free, transfer-molded, thermosetting plastic FINISH: All external surfaces are corrosion resistant and leads are readily solderable.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5913B_MotorolaInc.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1N5917B 1.5W ZENER DIODE WON-TOP ELECTRONICS
1N5917B ZENER DIODE RFE
1N5917B SILICON ZENER DIODES EIC
1N5917B 3W Silicon Planar Power Zener Diodes JGD
1N5917B 3W SILICON ZENER DIODES SEMTECH

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
1N5914B Zener Voltage Regulator Diodes
1N5915B Zener Voltage Regulator Diodes
1N5916B Zener Voltage Regulator Diodes
1N5918B Zener Voltage Regulator Diodes
1N5919B Zener Voltage Regulator Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

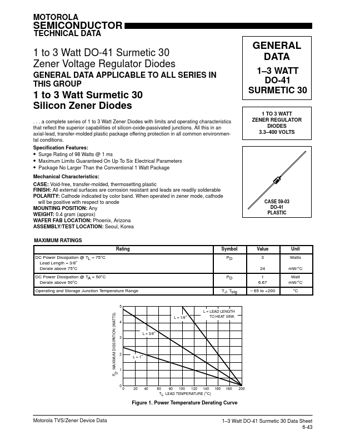

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 1 to 3 Watt DO-41 Surmetic 30 Zener Voltage Regulator Diodes GENERAL DATA APPLICABLE TO ALL SERIES IN THIS GROUP 1 to 3 Watt Surmetic 30 Silicon Zener Diodes . . . a complete series of 1 to 3 Watt Zener Diodes with limits and operating characteristics that reflect the superior capabilities of silicon-oxide-passivated junctions. All this in an axial-lead, transfer-molded plastic package offering protection in all common environmental conditions.
