V62C1802048L - Ultra Low Power 256K x 8 CMOS SRAM

Product Overview

Mosel Vitelic Corp

📥 Download Datasheet

V62C1802048L Ultra Low Power 256K x 8 CMOS SRAM by Mosel Vitelic Corp - Datasheet Preview — Datasheet preview – V62C1802048L

Datasheet Details

Part number	V62C1802048L
Manufacturer	Mosel Vitelic Corp
File Size	84.32 KB
Description	Ultra Low Power 256K x 8 CMOS SRAM
Datasheet	V62C1802048L Datasheet

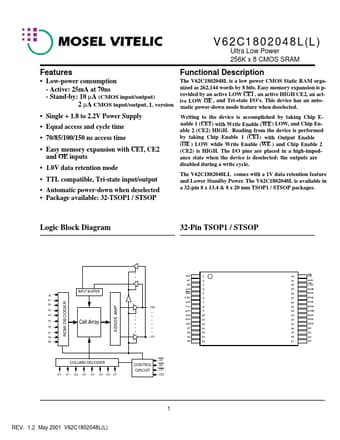

Additional preview pages of the V62C1802048L datasheet.

Product details

Description

The V62C1802048L is a low power CMOS Static RAM organized as 262,144 words by 8 bits.

Features

Low-power consumption - Active: 25mA at 70ns - Stand-by: 10 µA (CMOS input/output) 2 µA CMOS input/output, L version.
Single + 1.8 to 2.2V Power Supply.
Equal access and cycle time.
70/85/100/150 ns access time.
Easy memory expansion with CE1, CE2 and OE inputs.
1.0V data retention mode.
TTL compatible, Tri-state input/output.
Automatic power-down when deselected.
Package available: 32-TSOP1 / STSOP Functional Des.
