M62003L LOW POWER 2 OUTPUT SYSTEM RESET IC SERIES

M62003L Description

MITSUBISHI M62001L,FP/M62002L,FP/M62003L,FP/M62004L,FP/ M62005L,FP/M62006L,FP/M62007L,FP/M62008L,FP LOW POWER 2 OUTPUT SYSTEM RESE.
The M62001~8 are semiconductor integrated circuits whose optimum use is for the detection of the rise and fall in the power supply to a microcomputer.

M62003L Features

* Bi-CMOS process realizes a configuration of low current dissipating circuits. Circuit current Icc=5µA(Typ. ,normal mode,Vcc=5.0V) Icc=1µA(Typ. ,backup mode,Vcc=2.5V)
* Two-step detection of supply voltage Detection voltage in normal mode (2 types) Vs=4.45V/4.25V(Typ. ) Detection voltag

📥 Download Datasheet

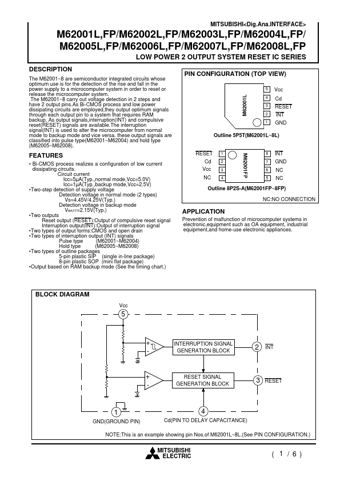

Preview of M62003L PDF
datasheet Preview Page 2 datasheet Preview Page 3
