M62021P - System Reset-IC

Download the M62021P datasheet PDF. This datasheet also covers the M62021L variant, as both devices belong to the same system reset-ic family and are provided as variant models within a single manufacturer datasheet.

Description

The M62021 is a system IC that controls the memory backup function of microcomputer (internal RAM).

The IC outputs reset signals (RES/RES) to a microcomputer at power-down and power failure.

Features

  • Built-in switch for selection between main power supply and backup power supply to RAM.
  • Small difference between input and output voltage (IOUT = 80 mA, VIN = 5 V) 0.2 V Typ.
  • Detection voltage (power supply monitor voltage) 4.40 V ± 0.2 V.
  • Chip select signal output (CS).
  • Two channels of reset outputs (RES/RES).
  • Power on reset circuit built-in.
  • Delay time variable by an external capacitance connected to Ct pin.
  • Facilitates.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M62021L-Renesas.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number M62021P
Manufacturer Renesas
File Size 268.52 KB
Description System Reset-IC
Datasheet download datasheet M62021P Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M62021P SYSTEM RESET-IC Mitsubishi
M62021 SYSTEM RESET IC WITH SWITCH FOR MEMORY BACK-UP Mitsubishi
M62021FP SYSTEM RESET IC WITH SWITCH FOR MEMORY BACK-UP Mitsubishi
M62021L SYSTEM RESET-IC Mitsubishi
M62022FP VOLTAGE DETECTING/SYSTEM RESETTING IC Mitsubishi

Other Datasheets by Renesas

Part Number Description
M62021FP System Reset-IC
M62021L System Reset-IC
M62332FP 8-bit 2ch I2C BUS D/A Converter
M62332P 8-bit 2ch I2C BUS D/A Converter
M62334FP 8-bit 4ch I2C BUS D/A Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

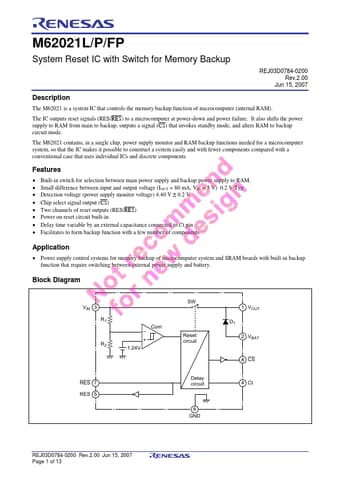

M62021L/P/FP System Reset IC with Switch for Memory Backup REJ03D0784-0200 Rev.2.00 Jun 15, 2007 Description The M62021 is a system IC that controls the memory backup function of microcomputer (internal RAM). The IC outputs reset signals (RES/RES) to a microcomputer at power-down and power failure. It also shifts the power supply to RAM from main to backup, outputs a signal (CS) that invokes standby mode, and alters RAM to backup circuit mode. The M62021 contains, in a single chip, power supply monitor and RAM backup functions needed for a microcomputer system, so that the IC makes it possible to construct a system easily and with fewer components compared with a conventional case that uses individual ICs and discrete components.
