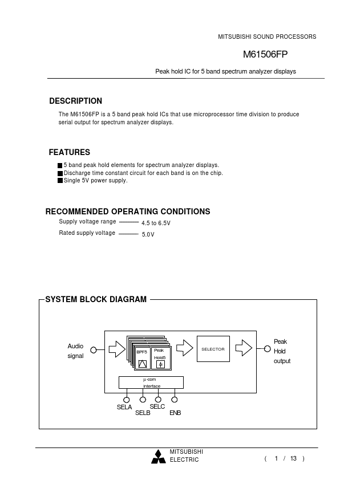

M61506FP Peak hold IC for 5 band spectrum analyzer displays

M61506FP Description

MITSUBISHI SOUND PROCESSORS M61506FP Peak hold IC for 5 band spectrum analyzer displays .
The M61506FP is a 5 band peak hold ICs that use microprocessor time division to produce serial output for spectrum analyzer displays.

M61506FP Features

* 5 band peak hold elements for spectrum analyzer displays. Discharge time constant circuit for each band is on the chip. Single 5V power supply. RECOMMENDED OPERATING CONDITIONS Supply voltage range Rated supply voltage 4.5 to 6.5V 5.0 V SYSTEM BLOCK DIAGRAM Audio signal BPF5 Peak BPF5 Peak Peak
