M61504FP DIGITAL SOUND CONTROLLER WITH SURROUND

M61504FP Description

MITSUBISHI SOUND PROCESSORS M61504FP DIGITAL SOUND CONTROLLER WITH SURROUND .
The M61504FP is an optimum digital sound controller IC for home audio.

M61504FP Features

* Built-in 4ch input selector. Built-in input volume (2dB step/3 bit) IC for Dolby-pro-logic Interface. Built-in Surround (ON/OFF,High/Middle/Low ) Tone control (Bass/Mid/Treble) Built-in Loudness. Vocal cut (Surround OFF setting only) Main Volume (36 step 0 to -80dB,- ∞) Microcomputer In

📥 Download Datasheet

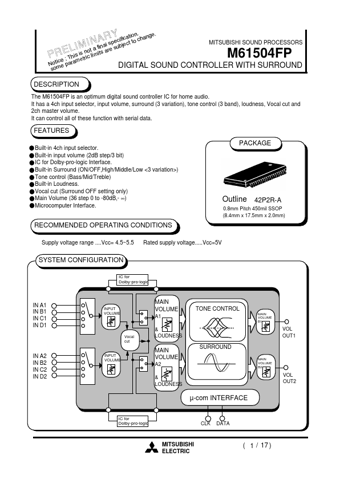

Preview of M61504FP PDF
datasheet Preview Page 2 datasheet Preview Page 3
