M5M82C37AP - CMOS PROGRAMMABLE DMA CONTROLLER

Product Overview

Mitsubishi

Part number	M5M82C37AP
Manufacturer	Mitsubishi
File Size	1.11 MB
Description	CMOS PROGRAMMABLE DMA CONTROLLER
Datasheet	M5M82C37AP Datasheet
Additional preview pages of the M5M82C37AP datasheet.

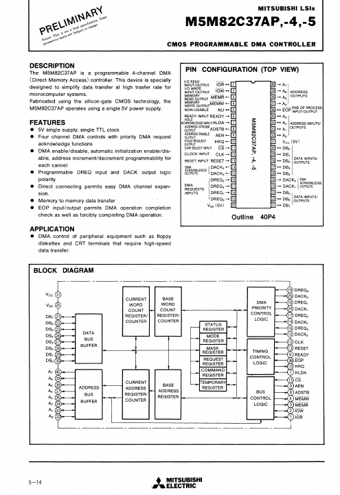

The M5M82C37AP is a programmable 4-channel DMA (Direct Memory Access) controller.

5V single supply, single TTL clock.
Four channel DMA controls with priority DMA request acknowledge functions.
DMA enable/disable, automatic initialization enable/dis- able, address increment/decrement programmability for each cannel.
Programmable DREQ input and DACK output logic polarity.
Direct connecting permits easy DMA channel expansion.
Memory to memory data transfer.
EOP input/output permits DMA operation completion check as.
