M5M82C37AFP - CMOS PROGRAMMABLE DMA CONTROLLER

Product Overview

Mitsubishi

Part number	M5M82C37AFP
Manufacturer	Mitsubishi
File Size	427.86 KB
Description	CMOS PROGRAMMABLE DMA CONTROLLER
Datasheet	M5M82C37AFP Datasheet

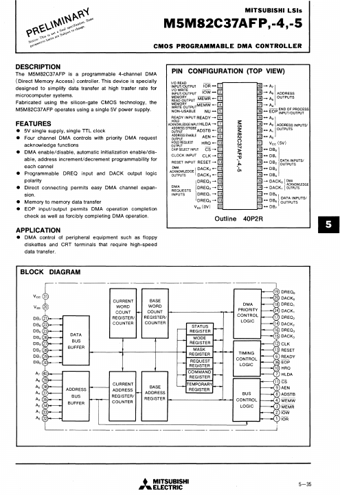

Additional preview pages of the M5M82C37AFP datasheet.

The M5M82C37AFP is a programmable 4-channel DMA (Direct Memory Access) controller.

5V single supply, single TTL clock.
Four channel DMA controls with priority DMA request acknowledge functions.
DMA enable/disable, automatic initialization enable/dis- able, address increment/decrement programmability for each cannel.
Programmable DREQ input and DACK output logic polarity.
Direct connecting permits easy DMA channel expansion.
Memory to memory data transfer.
EOP input/output permits DMA operation completion check as.
