M5M5408BRT 4194304-BIT (524288-WORD BY 8-BIT) CMOS STATIC RAM

Mitsubishi

Description

revision-K0.1e, ' 98.07.30 MITSUBISHI LSIs M5M5408BFP/TP/RT/KV/KR PRELIMINARY Notice: This is not a final specification.Some parametric limits are.
The M5M5408B is a family of 4-Mbit static RAMs organized as 524,288-words by 8-bit, fabricated by Mitsubishi's highperformance 0.

📥 Download Datasheet

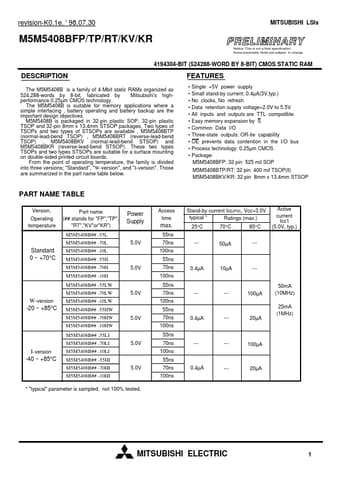

M5M5408BRT Datasheet Preview — Preview of M5M5408BRT PDF

Datasheet Specifications

Part number: M5M5408BRT
Manufacturer: Mitsubishi
File Size: 75.25 KB
Datasheet: M5M5408BRT_MitsubishiElectricSemiconductor.pdf
Description: 4194304-BIT (524288-WORD BY 8-BIT) CMOS STATIC RAM

Features

* Single +5V power supply
* Small stand-by current: 0.4µA(3V,typ. )
* No clocks, No refresh
* Data retention supply voltage=2.0V to 5.5V
* All inputs and outputs are TTL compatible.
* Easy memory expansion by S
* Common Data I/O
* Three-

Applications

* where a simple interfacing , battery operating and battery backup are the important design objectives. M5M5408B is packaged in 32-pin plastic SOP, 32-pin plastic TSOP and 32-pin 8mm x 13.4mm STSOP packages. Two types of TSOPs and two types of STSOPs are available , M5M5408BTP (normal-lead-bend TSOP)
