M5M5408ART, M5M5408AFP - 4194304-BIT (524288-WORD BY 8-BIT) CMOS STATIC RAM

M5M5408ART Description

MITSUBISHI LSIs M5M5408AFP,TP,RT-55L, -70L,-10L -55LL,-70LL,-10LL 4194304-BIT (524288-WORD BY 8-BIT) CMOS STATIC RAM .
The M5M5408A is a 4,194,304-bit CMOS Static RAM organizedas 524,288-word by 8-bit.

M5M5408ART Features

* Type name M5M5408AFP, TP, RT -55L M5M5408AFP, TP, RT -70L M5M5408AFP, TP, RT -10L M5M5408AFP, TP, RT -55LL M5M5408AFP, TP, RT

M5M5408ART Applications

* where high reliability, large storage, simpleinterfacing and battery back-up are important design objectives. The M5M5408A is available in 32-pin plastic SOP(M5M5408AFP) , 32-pin plastic normal-lead-bend TSOP(M5M5408ATP) and 32-pin plastic reverse-lead-bend TSOP(M5M5408ART) packages. Two types of TS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M5M5408ART, M5M5408AFP. Please refer to the document for exact specifications by model.

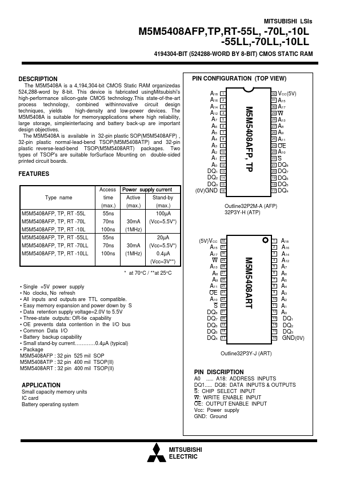

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M5M5408ART, M5M5408AFP
Manufacturer
Mitsubishi
File Size
49.83 KB
Datasheet
M5M5408AFP-Mitsubishi.pdf
Description
4194304-BIT (524288-WORD BY 8-BIT) CMOS STATIC RAM
Note
This datasheet PDF includes multiple part numbers: M5M5408ART, M5M5408AFP.
Please refer to the document for exact specifications by model.
