M54128FP - EARTH LEAKAGE CURRENT DETECTOR

Product Overview

Mitsubishi

📥 Download Datasheet

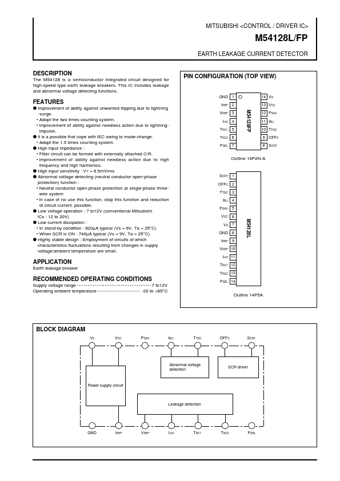

M54128FP EARTH LEAKAGE CURRENT DETECTOR by Mitsubishi - Datasheet Preview — Datasheet preview – M54128FP

Datasheet Details

Part number	M54128FP
Manufacturer	Mitsubishi
File Size	235.14 KB
Description	EARTH LEAKAGE CURRENT DETECTOR
Datasheet	M54128FP Datasheet
Additional preview pages of the M54128FP datasheet.

Product details

Description

The M54128 is a semiconductor integrated circuit designed for high-speed type earth leakage breakers.

Features

q lmprovement of ability against unwanted tripping due to Iightning -surge.
Adopt the two times counting system.
lmprovement of ability against needless action due to lightningimpulse. q lt is a possible that cope with lEC owing to mode change.
Adopt the 1.5 times counting system. q High input impedance :.
Filter circuit can be formed with externally attached C/R.
lmprovement of ability against needless action due to high frequency and high harmon.
