M54123L - EARTH LEAKAGE CURRENT DETECTOR

Mitsubishi

Datasheet Details

Part number	M54123L
Manufacturer	Mitsubishi
File Size	195.77 KB
Description	EARTH LEAKAGE CURRENT DETECTOR
Datasheet	M54123L_MitsubishiElectricSemiconductor.pdf

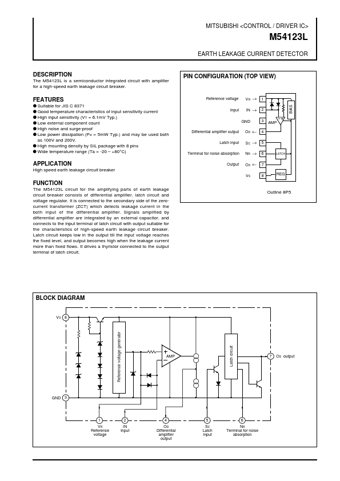

The M54123L is a semiconductor integrated circuit with amplifier for a high-speed earth leakage circuit breaker.

q Suitable for JIS C 8371 q Good temperature characteristics of input sensitivity current q High input sensitivity (VT = 6.1mV Typ. ) q Low external component count q High noise and surge-proof q Low power dissipation (Pd = 5mW Typ. ) and may be used both as 100V and 200V. q High mounting density by SIL package with 8 pins q Wide temperature range (Ta = -20.
+80°C) Reference voltage Input VR → IN → GND 1 2 3 4 5 6 7 8 REG LATCH AMP Differential amplifier output Latch input Terminal f.
