M52670 - 4-BIT A/D CONVERTER

Product Overview

Mitsubishi

Datasheet Details

Part number	M52670
Manufacturer	Mitsubishi
File Size	212.70 KB
Description	4-BIT A/D CONVERTER
Datasheet	M52670 Datasheet
Additional preview pages of the M52670 datasheet.

Product details

Description

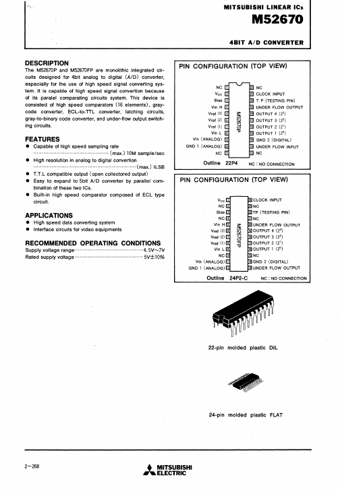

The M52670P and M52670FP are monolithic integrated circuits designed for 4bit analog to digital (AID) converter, especially for the use of high speed signal converting system.

Features

Capable of high speed sampling rate (max. ) 10M sample/sec.
High resolution in analog to digital convertion.
(max. ) IlSB.
T. T. l compatible output (open collectored output).
Easy to expand to 5bit AID converter by parallel com- bination of these two ICs.
Built-in high speed comparator composed of ECl type circuit. APPL.
