M52036SP - SYNC SIGNAL PROCESSOR

Description

The M52036SP is a semiconductor integrated circuit for the automatic selection and rectification of sync waveforms.

Features

  • Indicates the presence or absence of synchronizing-signal input and the polarities of the signals.
  • Pulse-output circuit is for open-collector output.
  • Clamp-pulse output and Clamp-pulse trigger is generated at the front edge for separate sync and composite sync input, and at the rear edge for sync on video input.
  • 20-pin shrink-DIP.

📥 Download Datasheet

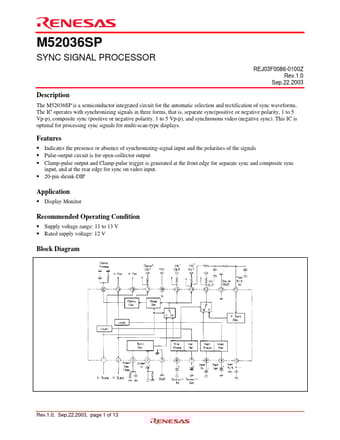

Datasheet preview – M52036SP

Datasheet Details

Part number M52036SP
Manufacturer Renesas Electronics
File Size 254.25 KB
Description SYNC SIGNAL PROCESSOR
Datasheet download datasheet M52036SP Datasheet
Additional preview pages of the M52036SP datasheet.

📁 Similar Datasheet

  • M52036SP - SYNC SIGNAL PROCESSOR (Mitsubishi)
  • M52030ASP - NTSC SYSTEM SINGLE-CHIP COLOR TV SIGNAL PROCESSOR (Mitsubishi)
  • M52034FP - Standard PLL VIF/SIF (Mitsubishi Electric)
  • M52034SP - Standard PLL VIF/SIF (Mitsubishi Electric)
  • M52038ASP - PAL SYSTEM SINGLE-CHIP COLOR TV SIGNAL PROCESSOR (Mitsubishi)
  • M52039SP - PAL/NTSC VIDEO CHROMA DEFLECTION (Mitsubishi)
  • M52001SP - SYNC SIGNAL PROCESSOR (Mitsubishi)
  • M52003AFP - PAL VIDEO CHROMA INTERFACE (Mitsubishi)
  • M52005P - COMB FILTER Y/C PROCESSOR/CORING (Mitsubishi)
  • M52014SP - TWIN PLL VIF / SIF (Mitsubishi Electric)
Other Datasheets by Renesas Technology

Full PDF Text Transcription

Click to expand full text
M52036SP SYNC SIGNAL PROCESSOR REJ03F0086-0100Z Rev.1.0 Sep.22.2003 Description The M52036SP is a semiconductor integrated circuit for the automatic selection and rectification of sync waveforms. The IC operates with synchronizing signals in three forms, that is, separate sync(positive or negative polarity, 1 to 5 Vp-p), composite sync (positive or negative polarity, 1 to 5 Vp-p), and synchronous video (negative sync). This IC is optimal for processing sync signals for multi-scan-type displays.
