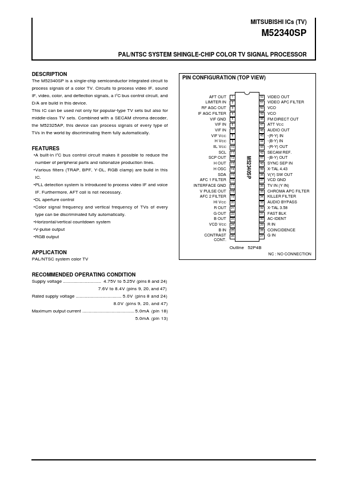

Additional preview pages of the M52340SP datasheet.

Product details

Description

The M52340SP is a single-chip semiconductor integrated circuit to process signals of a color TV.

Features

A built-in I C bus control circuit makes it possible to reduce the number of peripheral parts and rationalize production lines.
Various filters (TRAP, BPF, Y-DL, RGB clamp) are build in this IC.
PLL detection system is introduced to process video IF and voice IF. Furthermore, AFT coil is not necessary.
DL aperture control.
Color signal frequency and vertical frequency of TVs of every type can be discriminated fully automatically.
Horizontal/ve.
