M52347SP - SYNC SIGNAL PROCESSOR

Description

The M52347 automatically selects three types of synchronous signals containing separate sync (positive and negative polarities of 0.5 to 2.5 VP-P), composite sync (positive and negative polarities of 0.5 to 2.5 VP-P) and sync-on-video (sync negative polarity), and performs waveform shaping.

Features

  • GREEN IN 4 GND 5 COMP/H IN 6 COMP/H DET 7 V IN 8 V DET 9 V TIME GATE SW 10 17 CLAMP+ OUT 16 VCC 15 HD- OUT 14 HD+ OUT 13 VD+ OUT 12 V S/S OUT 11 V S/S IN.
  • Low power consumption with supply voltage of 5V Capable of obtaining output information on whether to input synchronous signal, and on polarity Output of clamp pulse Equipped with V TIME GATE SW that enables selecting whether or not VD portion pulse is output from pin 14 / 15 . Equipped with.

📥 Download Datasheet

📁 Similar Datasheet

  • M52306FP - Synchronization Detection (Mitsubishi Electric)
  • M52319SP - Twin PLL VIF / SIF (Mitsubishi Electric)
  • M52327SP - Wideband 3-Channel Video Amplifier (Mitsubishi Electric)
  • M52328SP - Wideband 3-Channel Video Amplifier (Mitsubishi Electric)
  • M5232P - Multiple RS-232 Drivers and Receivers (ALi)
  • M52334FP - PLL-Split VIF/SIF (Renesas)
  • M52336SP - Waveform Generation (Mitsubishi Electric)
  • M52358VP - PAL JOG (Mitsubishi Electric)
  • M5236L - General Purpose 3-Terminal Variable Voltage Output Regulator (Mitsubishi Electric)
  • M5236ML - General Purpose 3-Terminal Variable Voltage Output Regulator (Mitsubishi Electric)
Other Datasheets by Mitsubishi

Full PDF Text Transcription

Click to expand full text

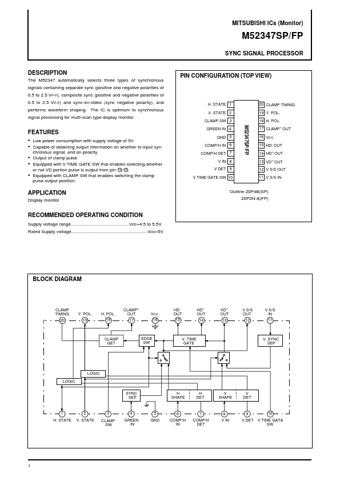

MITSUBISHI ICs (Monitor) M52347SP/FP SYNC SIGNAL PROCESSOR DESCRIPTION The M52347 automatically selects three types of synchronous signals containing separate sync (positive and negative polarities of 0.5 to 2.5 VP-P), composite sync (positive and negative polarities of 0.5 to 2.5 VP-P) and sync-on-video (sync negative polarity), and performs waveform shaping. The IC is optimum to synchronous signal processing for multi-scan type display monitor. H. STATE 1 V. STATE 2 CLAMP SW 3 20 CLAMP TIMING 19 Y. POL. 18 H. POL.
