M37421P-001SS, M37421P-000SS Datasheet - Mitsubishi

M37421P-001SS PIGGYBACK

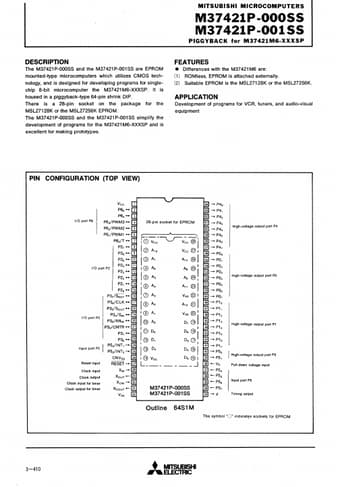

The M37421 P-OOOSS and the M37421 P-001SS are EPROM mounted-type microcomputers which utilizes CMOS technology. and is designed for developing programs for singlechip 8-bit microcomputer the M37421 M6-XXXSP. It is housed in a piggyback-type 64-pin shrink DIP. There is a 28-pin socket on the package .

M37421P-001SS Features

* Differences with the M37421 M6 are: (1) ROMless. EPROM is attached externally. (2) Suitable EPROM is the M5L27128K or the M5L27256K. APPLICATION Development of programs for VCR. tuners. and audio-visual equipment PIN CONFIGURATION (TOP VIEW) 110 port P6 Vee P6s P64 P63/PWM3 P6,/PWM2

M37421P-000SS-Mitsubishi.pdf

This datasheet PDF includes multiple part numbers: M37421P-001SS, M37421P-000SS. Please refer to the document for exact specifications by model.
