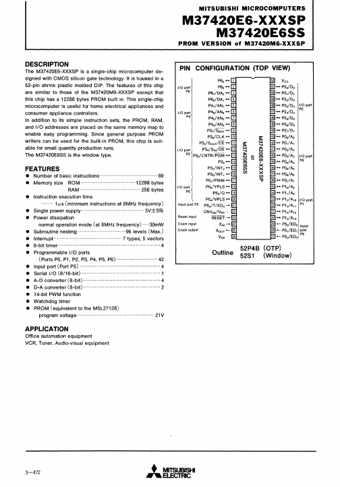

M37420E6-XXXSP Datasheet Preview — Preview of M37420E6-XXXSP PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: M37420E6-XXXSP
Manufacturer: Mitsubishi
File Size: 525.49 KB
Datasheet: M37420E6-XXXSP-Mitsubishi.pdf
Description: PROM

M37420E6-XXXSP Product details

Description

The M37420E6-XXXSP is a single-chip microcomputer designed with CMOS silicon gate technology.

Features

of this chip are similar to those of the M37420M6-XXXSP except that this chip has a 12288 bytes PROM builtin. This single-chip microcomputer is useful for home electrical appliances and consumer appliance controllers. In addition to its simple instruction sets, the PROM, RAM, and I/O addresses are placed on the same memory map to enable easy programming. Since general purpose PROM writers can be used for the built-in PROM, this chip is suitable for small quantity production runs. The M37420E6SS.
