M2S56D30TP-10 - 256M Double Data Rate Synchronous DRAM

Product Overview

Mitsubishi

Datasheet Details

Part number	M2S56D30TP-10
Manufacturer	Mitsubishi
File Size	259.90 KB
Description	256M Double Data Rate Synchronous DRAM
Datasheet	M2S56D30TP-10 Datasheet

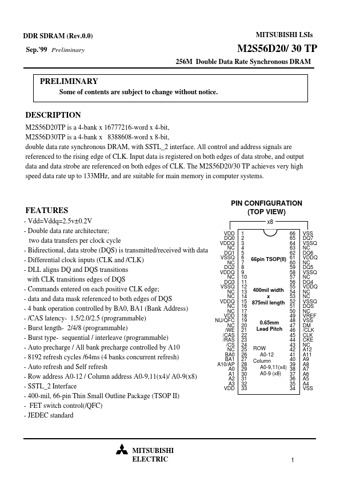

Additional preview pages of the M2S56D30TP-10 datasheet.

Product details

Description

M2S56D20TP is a 4-bank x 16777216-word x 4-bit, M2S56D30TP is a 4-bank x 8388608-word x 8-bit, double data rate synchronous DRAM, with SSTL_2 interface.

Features

- Vdd=Vddq=2.5v±0.2V - Double data rate architecture; two data transfers per clock cycle - Bidirectional, data strobe (DQS) is transmitted/received with data - Differential clock inputs (CLK and /CLK) - DLL aligns DQ and DQS transitions with CLK transitions edges of DQS - Commands entered on each positive CLK edge; - data and data mask referenced to both edges of DQS - 4 bank operation controlled by BA0, BA1 (Bank Address) - /CAS latency- 1.5/2.0/2.5 (programmable) - Burst length- 2/4/8 (program.
