ML725B11F - (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES

Product Overview

Mitsubishi Electric

📥 Download Datasheet

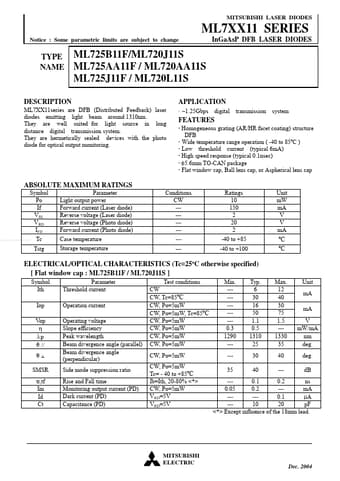

ML725B11F (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES by Mitsubishi Electric - Datasheet Preview — Datasheet preview – ML725B11F

Datasheet Details

Part number	ML725B11F
Manufacturer	Mitsubishi Electric
File Size	199.14 KB
Description	(ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES
Datasheet	ML725B11F Datasheet
Note	This datasheet PDF includes multiple part numbers: ML725B11F, ML720AA11S. Please refer to the document for exact specifications by model.
Additional preview pages of the ML725B11F datasheet.

Product details

Description

ML7XX11series are DFB (Distributed Feedback) laser diodes emitting light beam around 1310nm.

Features

Homogeneous grating (AR/HR facet coating) structure DFB.
Wide temperature range operation ( -40 to 85ºC ).
Low threshold current (typical 6mA).
High speed response (typical 0.1nsec).
φ5.6mm TO-CAN package.
Flat window cap, Ball lens cap, or Aspherical lens cap.
