ML725B34F - (ML7xx34) 2.5Gbps InGaAsP DFB LASER DIODE

Download the ML725B34F datasheet PDF. This datasheet also covers the ML720J34S variant, as both devices belong to the same (ml7xx34) 2.5gbps ingaasp dfb laser diode family and are provided as variant models within a single manufacturer datasheet.

Description

ML7XX34 series are uncooled DFB (Distributed Feedback) laser diodes for 2.5Gbps transmission emitting light beam at 1310nm.

Features

  • Wide temperature range operation (-40oC to 95oC).
  • High side-mode-suppression-ratio (typical 40dB).
  • High resonance frequency (typical 11GHz).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ML720J34S_MitsubishiElectric.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ML725B16F 2.5Gbps InGaAsP DFB LASER DIODE Mitsubishi
ML725B8F InGaAsP-MQW-FP LASER DIODES Mitsubishi
ML725C8F InGaAsP-MQW-FP LASER DIODES Mitsubishi
ML7202-001 2-Channel Echo Canceler LAPIS
ML7204-001 VoIP Codec OKI Semiconductor

Other Datasheets by Mitsubishi Electric

Part Number Description
ML725B11F (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES
ML725B16F (ML7xx16) LASER DIODES 2.5Gbps InGaAsP DFB LASER DIODE
ML725B19F (ML7xx19) LASER DIODES 1310nm InGaAsP FP LASER DIODES
ML725B45F (ML7xx45) 1310nm InGaAsP FP LASER DIODES
ML725AA11F (ML7xx11) LASER DIODES InGaAsP DFB LASER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

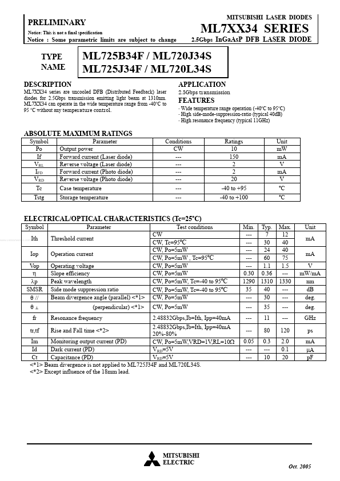

PRELIMINARY Notice: This is not a final specification MITSUBISHI LASER DIODES ML7XX34 SERIES 2.5Gbps InGaAsP DFB LASER DIODE Notice : Some parametric limits are subject to change TYPE NAME DESCRIPTION ML725B34F / ML720J34S ML725J34F / ML720L34S APPLICATION 2.5Gbps transmission ML7XX34 series are uncooled DFB (Distributed Feedback) laser diodes for 2.5Gbps transmission emitting light beam at 1310nm. ML7XX34 can operate in the wide temperature range from -40oC to 95 oC without any temperature control.
