MH88437-P - Data Access Arrangement Advance Information

Mitel Networks

📥 Download Datasheet

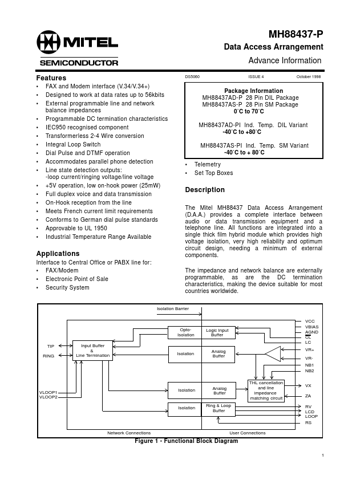

MH88437-P Datasheet Preview — Preview of MH88437-P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: MH88437-P
Manufacturer: Mitel Networks
File Size: 96.31 KB
Datasheet: MH88437-P_MitelNetworksCorporation.pdf
Description: Data Access Arrangement Advance Information

MH88437-P Product details

Description

The Mitel MH88437 Data Access Arrangement (D.A.A.) provides a complete interface between audio or data transmission equipment and a telephone line.

Features

FAX and Modem interface (V.34/V.34+) Designed to work at data rates up to 56kbits External programmable line and network balance impedances Programmable DC termination characteristics IEC950 recognised component Transformerless 2-4 Wire conversion Integral Loop Switch Dial Pulse and DTMF operation Accommodates parallel phone det.
