MH88400 Line Interface Circuit Preliminary Information

Mitel Networks

Description

® MH88400 Line Interface Circuit Preliminary Information .
The Mitel MH88400 Line Interface Circuit provides a complete audio and signalling link between audio equipment and central office.

📥 Download Datasheet

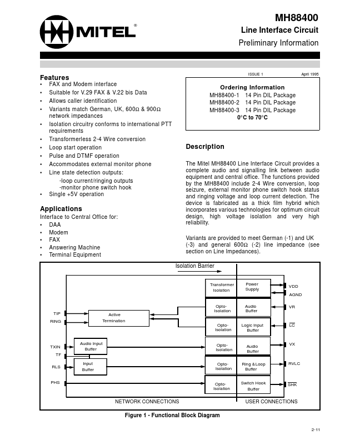

MH88400 Datasheet Preview — Preview of MH88400 PDF

Datasheet Specifications

Part number: MH88400
Manufacturer: Mitel Networks
File Size: 120.25 KB
Datasheet: MH88400_MitelNetworksCorporation.pdf
Description: Line Interface Circuit Preliminary Information

Features

* FAX and Modem interface Suitable for V.29 FAX & V.22 bis Data Allows caller identification Variants match German, UK, 600Ω & 900 Ω network impedances Isolation circuitry conforms to international PTT

Applications

* Interface to Central Office for:
* DAA
* Modem
* FAX
* Answering Machine
* Terminal Equipment Transformer Isolation VDD AGND TIP RING Active Termination OptoIsolation OptoIsolation Audio Buffer Logic Input Buffer VR LC TXIN TF RLS Audio Input Buffer
