MT90710 - High-Speed Isochronous Multiplexer

Product Overview

Mitel Networks Corporation

Datasheet Details

Part number	MT90710
Manufacturer	Mitel Networks Corporation
File Size	113.66 KB
Description	High-Speed Isochronous Multiplexer
Datasheet	MT90710 Datasheet

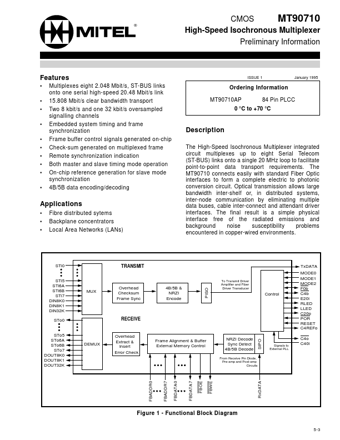

Additional preview pages of the MT90710 datasheet.

Product details

Description

The High-Speed Isochronous Multiplexer integrated circuit multiplexes up to eight Serial Telecom (ST-BUS) links onto a single 20 MHz loop to facilitate point-to-point data transport requirements.

Features

Multiplexes eight 2.048 Mbit/s, ST-BUS links onto one serial high-speed 20.48 Mbit/s link 15.808 Mbit/s clear bandwidth transport Two 8 kbit/s and one 32 kbit/s oversampled signalling channels Embedded system timing and frame synchronization Frame buffer control signals generated on-chip Check-sum generated on multiplexed frame Remote synchronization indication Both master and slave timing mode op.
