MT90224, MT90222 - 4/8/16 Port IMA/TC PHY Device

Name: MT90224
SKU: MT90224-675371

Zarlink Semiconductor

📥 Download Datasheet

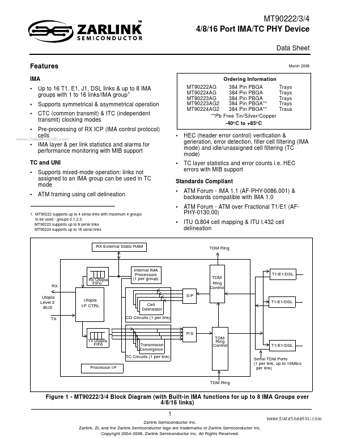

MT90224 Datasheet Preview — This datasheet PDF includes multiple part numbers: MT90224, MT90222. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MT90224, MT90222
Manufacturer	Zarlink Semiconductor
File Size	1.03 MB
Description	4/8/16 Port IMA/TC PHY Device
Datasheet	MT90222_ZarlinkSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MT90224, MT90222. Please refer to the document for exact specifications by model.

MT90224 Product details

Description

The MT90222/3/4 device is targeted to systems implementing the ATM FORUM Inverse Multiplexing for ATM (IMA version 1.1 and 1.0) or UNI specifications for T1/E1 rates.

Features

IMA.
Up to 16 T1, E1, J1, DSL links & up to 8 IMA groups with 1 to 16 links/IMA group1 Supports symmetrical & asymmetrical operation CTC (common transmit) & ITC (independent transmit) clocking modes Pre-processing of RX ICP (IMA control protocol) cells IMA layer & per link statistics and alarms for performance monitoring with MIB support.
Ordering Information MT90222AG 384 Pin PBGA MT90224AG 384 Pin PBGA MT90223AG 384 Pin PBGA M.
