MT8976 - ISO-CMOS ST-BUS FAMILY T1/ESF Framer Circuit

Description

The MT8976 is Mitel’s second generation T1 interface solution.

The MT8976 meets the Extended Super Frame format (ESF), the current D3/D4 format and is compatible with SLC-96 systems.

The MT8976 interfaces to DS1 1.544 Mbit/sec digital trunk.

DS1/ESF digita

Features

  • D3/D4 or ESF framing and SLC-96 compatible 2 frame elastic buffer with 32 µ sec jitter buffer Insertion and detection of A, B,C,D bits. Signalling freeze, optional debounce Selectable B8ZS, jammed bit (ZCS) or no zero code suppression Yellow alarm and blue alarm signal capabilities Bipolar violation count, FT error count, CRC error count Selectable robbed bi.

📥 Download Datasheet

Datasheet Details

Part number MT8976
Manufacturer Mitel Networks Corporation
File Size 337.20 KB
Description ISO-CMOS ST-BUS FAMILY T1/ESF Framer Circuit
Datasheet download datasheet MT8976 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MT8910 Digital Subscriber Line Interface Circuit Mitel Semiconductor
MT8910AC Digital Subscriber Line Interface Circuit Mitel Semiconductor
MT8930B Subscriber Network Interface Circuit Mitel Networks
MT8930C Subscriber Network Interface Circuit Mitel Networks
MT8930C Subscriber Network Interface Circuit Zarlink Semiconductor

Other Datasheets by Mitel Networks Corporation

Part Number Description
MT8971B (MT8972B) ISO2-CMOS ST-BUS FAMILY Digital Subscriber Interface Circuit Digital Network Interface Circuit
MT8972B (MT8971B) ISO2-CMOS ST-BUS FAMILY Digital Subscriber Interface Circuit Digital Network Interface Circuit
MT8977 ISO-CMOS ST-BUS FAMILY T1/ESF Framer Circuit
MT8979 ISO-CMOS ST-BUS FAMILY CEPT PCM 30/CRC-4 Framer & Interface
MT8910-1 CMOS ST-BUS FAMILY Digital Subscriber Line Interface Circuit

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

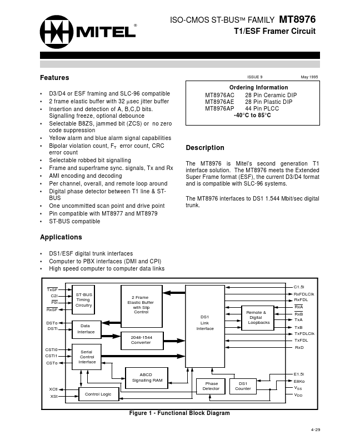

® ISO-CMOS ST-BUS™ FAMILY MT8976 T1/ESF Framer Circuit Features • • • • • • • • • • • • • • D3/D4 or ESF framing and SLC-96 compatible 2 frame elastic buffer with 32 µ sec jitter buffer Insertion and detection of A, B,C,D bits. Signalling freeze, optional debounce Selectable B8ZS, jammed bit (ZCS) or no zero code suppression Yellow alarm and blue alarm signal capabilities Bipolar violation count, FT error count, CRC error count Selectable robbed bit signalling Frame and superframe sync.
