MPW1022 - Single & Dual Output DC/DC Converters

Product Overview

Minmax Technology

📥 Download Datasheet

MPW1022 Single & Dual Output DC/DC Converters by Minmax Technology - Datasheet Preview — Datasheet preview – MPW1022

Datasheet Details

Part number	MPW1022
Manufacturer	Minmax Technology
File Size	689.11 KB
Description	Single & Dual Output DC/DC Converters
Datasheet	MPW1022 Datasheet
Note	This datasheet PDF includes multiple part numbers: MPW1022, MPW1xxx. Please refer to the document for exact specifications by model.

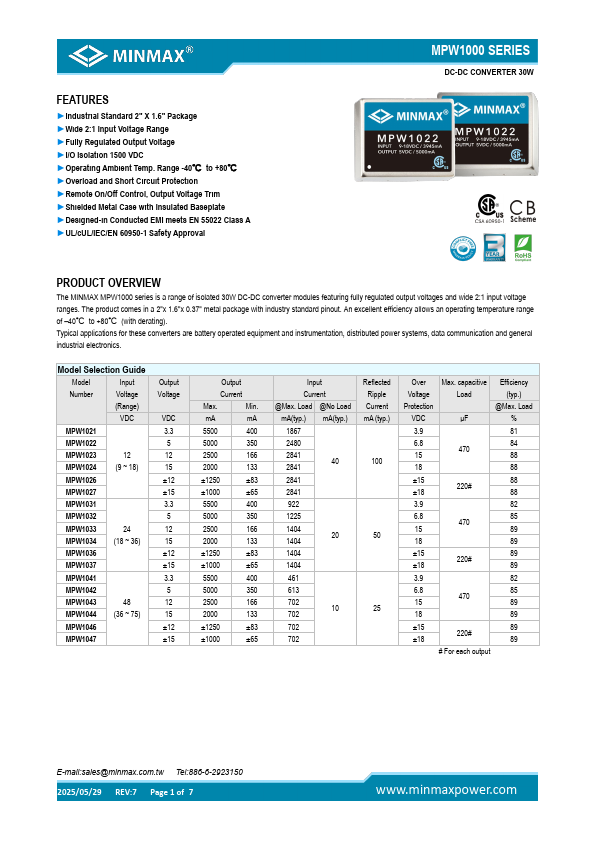

Additional preview pages of the MPW1022 datasheet.

Product details

Features

Industrial Standard 2" X 1.6" Package.
Wide 2:1 Input Voltage Range.
Fully Regulated Output Voltage.
I/O Isolation 1500 VDC.
Operating Ambient Temp. Range -40℃ to +80℃.
Overload and Short Circuit Protection.
Remote On/Off Control, Output Voltage Trim.
Shielded Metal Case with Insulated Baseplate.
Designed-in Conducted EMI meets EN 55022 Class A.
UL/cUL/IEC/EN 60950-1 Safety Approval MPW1000 SERIES DC-DC.
