MPW1023 - Single & Dual Output DC/DC Converters

This page provides the datasheet information for the MPW1023, a member of the MPW1xxx Single & Dual Output DC/DC Converters family.

Features

  • Industrial Standard 2" X 1.6" Package.
  • Wide 2:1 Input Voltage Range.
  • Fully Regulated Output Voltage.
  • I/O Isolation 1500 VDC.
  • Operating Ambient Temp. Range -40℃ to +80℃.
  • Overload and Short Circuit Protection.
  • Remote On/Off Control, Output Voltage Trim.
  • Shielded Metal Case with Insulated Baseplate.
  • Designed-in Conducted EMI meets EN 55022 Class A.
  • UL/cUL/IEC/EN 60950-1 Safety Approval MPW1000 SERIES DC-DC.

📥 Download Datasheet

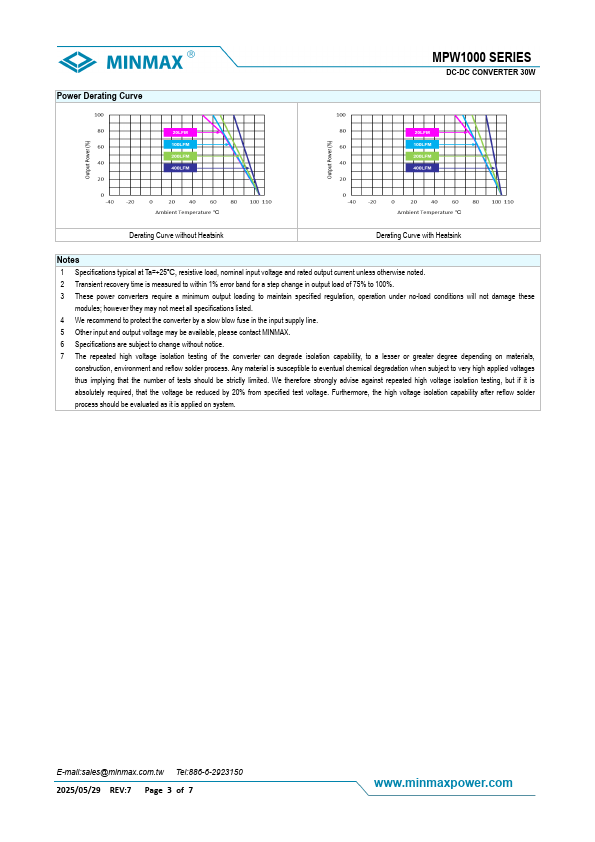

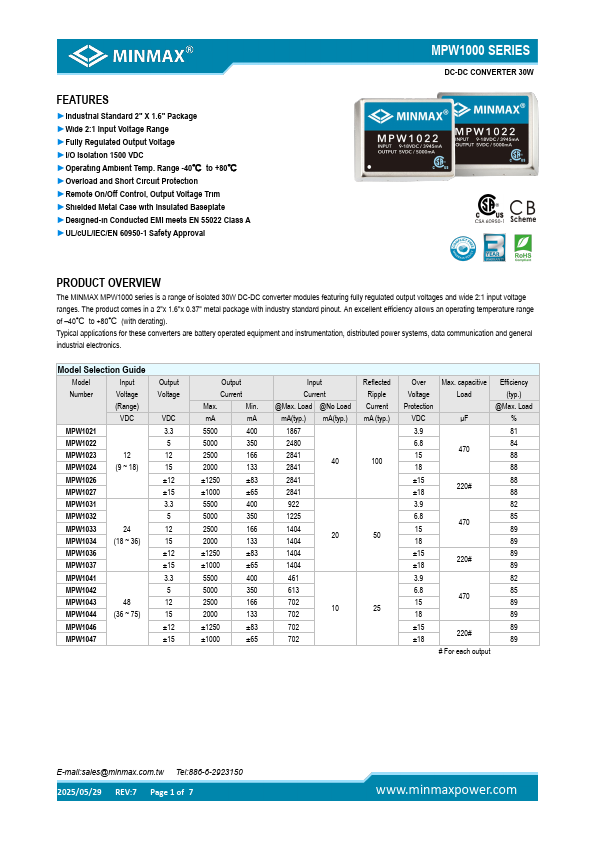

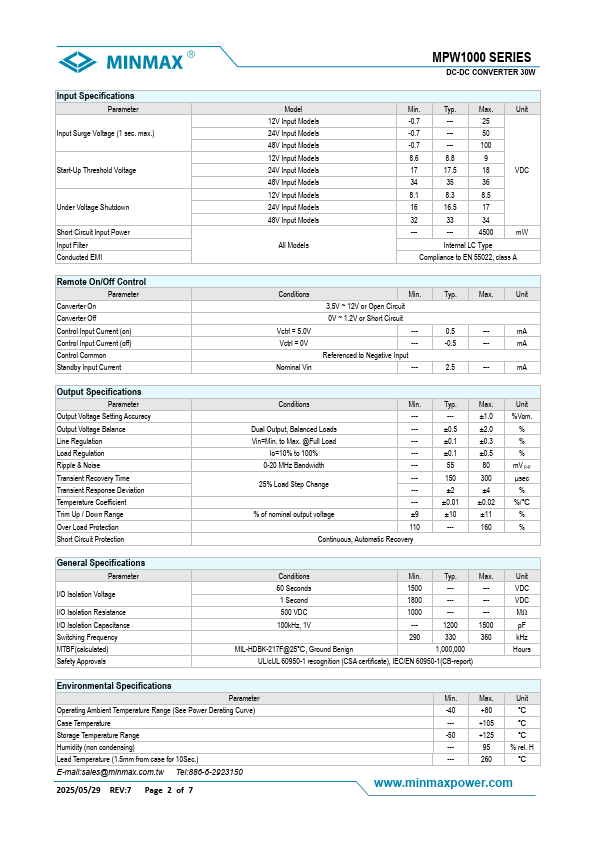

Datasheet preview – MPW1023
