PHA-13LN+, PHA-13LN+-Mini - Monolithic Amplifier

Mini-Circuits

The PHA-13LN+ by Mini-Circuits is a Monolithic Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

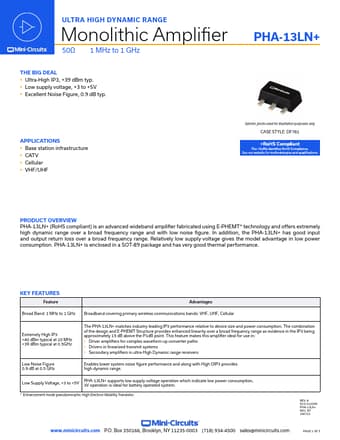

PHA-13LN+ Monolithic Amplifier by Mini-Circuits - Datasheet Preview — Official preview page of the **PHA-13LN+** Monolithic Amplifier datasheet (Mini-Circuits).

Datasheet Details

Part number	PHA-13LN+, PHA-13LN+-Mini
Manufacturer	Mini-Circuits
File Size	410.72 KB
Description	Monolithic Amplifier
Datasheet	PHA-13LN+-Mini-Circuits.pdf
Note	This datasheet PDF includes multiple part numbers: PHA-13LN+, PHA-13LN+-Mini. Please refer to the document for exact specifications by model.
Additional preview pages of the PHA-13LN+ datasheet.

PHA-13LN+ Product details

Description

RF-IN RF-OUT and DC-IN 4 GND Function RF-IN RF-OUT and DC-IN GND Pin Number 1 3 2,4 Description RF Input RF Output and DC Bias Connections to ground.3 RF-OUT & DC-IN 2 GROUND 1 RF-IN www.minicircuits.com P.O.Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com PAGE 3 OF 5 ULTRA HIGH DYNAMIC RANGE Monolithic Amplifier 50Ω 1 MHz to 1 GHz Vdd C6 C5 CHARACTERIZATION TEST / RECOMMENDED APPLICATION CIRCUIT RF-IN L2 C2 Vdd 1 4 C6 DCU5T L1 3 RF-IN L2 CC12 1 4

Features

Feature Advantages Broad Band: 1 MHz to 1 GHz Broadband covering primary wireless communications bands: VHF, UHF, Cellular Extremely High IP3 +40 dBm typical at 20 MHz +39 dBm typical at 0.5GHz The PHA-13LN+ matches industry leading IP3 performance relative to device size and power consumption. The combination of the design and E-PHEMT Structure provides enhanced linearity over a broad frequency range as evidence in the IP3 being approximately 15 dB above the P1dB point. This feature makes t.
