MCA-352 - Frequency Mixer

Name: MCA-352
SKU: MCA-352-1590514

Mini-Circuits

The MCA-352 by Mini-Circuits is a Frequency Mixer. Below is the official datasheet preview.

Datasheet Details

Part number	MCA-352
Manufacturer	Mini-Circuits
File Size	319.77 KB
Description	Frequency Mixer
Datasheet	MCA-352-MiniCircuits.pdf

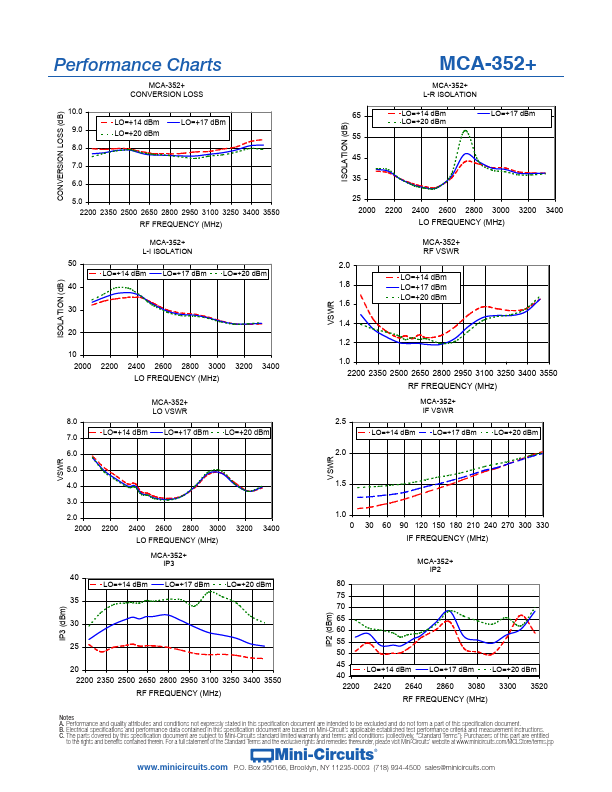

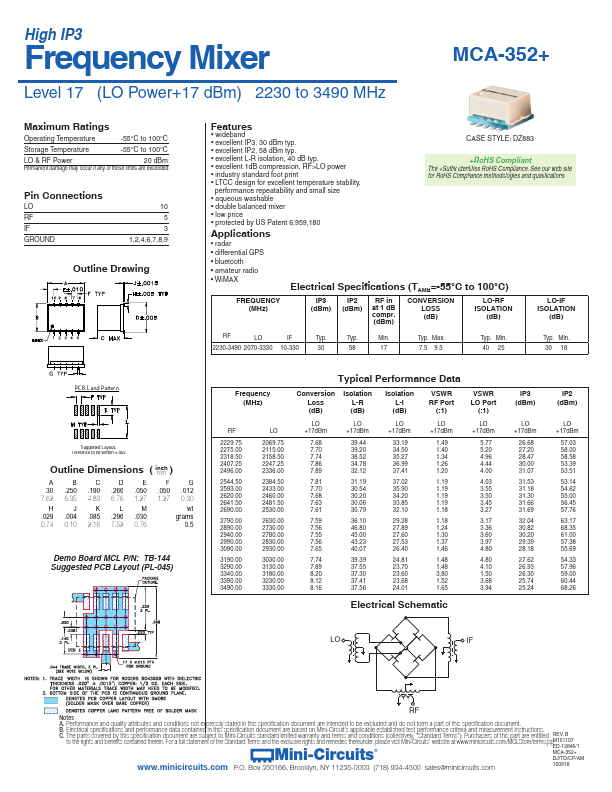

Additional preview pages of the MCA-352 datasheet.

wideband.
excellent IP3, 30 dBm typ.
excellent IP2, 58 dBm typ.
excellent L-R isolation, 40 dB typ.
excellent 1dB compression, RF>LO power.
industry standard foot print.
LTCC design for excellent temperature stability, performance repeatability and small size.
aqueous washable.
double balanced mixer.
low price.
protected by US Patent 6,959,180 CASE STYLE: DZ883 +RoHS Compliant The +Suffix iden.
