The MCA1206AT by Vishay is a High Stability Thin Film Flat Chip Resistors. Below is the official datasheet preview.
| Part number | MCA1206AT |
|---|---|
| Manufacturer | Vishay |
| File Size | 171.53 KB |
| Description | High Stability Thin Film Flat Chip Resistors |
| Datasheet |
 MCA1206AT-Vishay.pdf
|
|
|

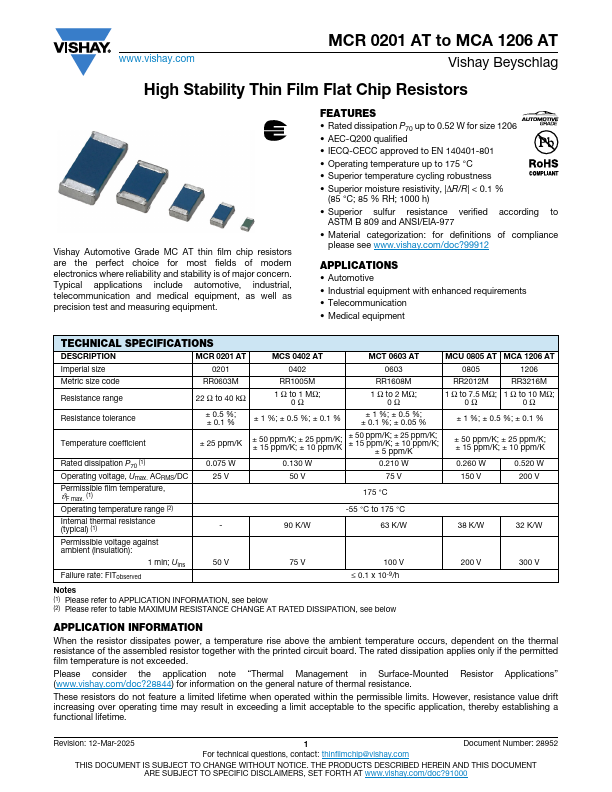

MCR 0201 AT MCS 0402 AT MCT 0603 AT MCU 0805 AT MCA 1206 AT Imperial size 0201 0402 0603 0805 1206 Metric size code RR0603M RR1005M RR1608M RR2012M RR3216M Resistance range 22 Ω to 40 kΩ 1 Ω to 1 MΩ; 0Ω 1 Ω to 2 MΩ; 0Ω 1 Ω to 7.5 MΩ; 1 Ω to 10 MΩ; 0Ω 0Ω Resistance tolerance ± 0.5 %; ± 0.1 % ± 1 %; ± 0.5 %; ± 0.1 % ± 1 %; ± 0.5 %; ± 0.1 %; ± 0.05 % ± 1 %; ± 0.5 %; ± 0.1 % Temperature coefficient Rated dissipation P70 (1) Operating voltage, Umax.ACRMS/DC Permissible f
