MT42C4256 - 256K x 4 VRAM

Features

  • Class B High-Reliability Processing.
  • DRAM: 262144 Words × 4 Bits SAM: 512 Words × 4 Bits.
  • Single 5-V Power Supply (±10% Tolerance).
  • Dual Port Accessibility.
  • Simultaneous and Asynchronous Access From the DRAM and SAM Ports.
  • Bidirectional-Data-Transfer Function Between the DRAM and the Serial-Data Register.
  • 4 × 4 Block-Write Feature for Fast Area Fill Operations; As Many as Four Memory Address Locations Written per Cycle From an On-Chip.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MT42C4256 256K X 4 VRAM 256K x 4 DRAM Austin Semiconductor
MT42C4064 64K x 4 DRAM Micron
MT4218-HR (MT4318-HR / MT4218-HR) Markech Standard 5mm White Diff Marktech Optoelectronics
MT4239 40V Power MOSFET MT Semiconductor
MT4264 64K x 1 DRAM Micron Technology

Other Datasheets by Micross

Part Number Description
MT4C4001J 1 MEG x 4 DRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

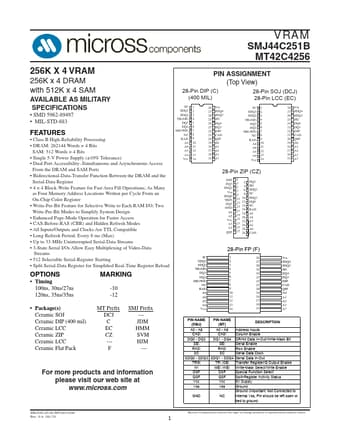

VRAM SMJ44C251B MT42C4256 256K X 4 VRAM 256K x 4 DRAM with 512K x 4 SAM AVAILABLE AS MILITARY SPECIFICATIONS • SMD 5962-89497 • MIL-STD-883 FEATURES • Class B High-Reliability Processing • DRAM: 262144 Words × 4 Bits SAM: 512 Words × 4 Bits • Single 5-V Power Supply (±10% Tolerance) • Dual Port Accessibility–Simultaneous and Asynchronous Access From the DRAM and SAM Ports • Bidirectional-Data-Transfer Function Between the DRAM and the Serial-Data Register • 4 × 4 Block-Write Feature for Fast Area Fill Operations; As Many as Four Memory Address Locations Written per Cycle From an On-Chip Color Register • Write-Per-Bit Feature for Selective Write to Each RAM I/O; Two Write-Per-Bit Modes to Simplify System Design • Enhanced Page-Mode Operation for Faster Access • CAS-Before-RAS (CBR) and Hi
