M3GB700515T, M3GB700512T HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER

M3GB700515T Description

HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER PD-97877C M3GB-SERIES 70V Input, Triple Output .
The M3GB-Series of DC-DC converters are second generation design of the legacy M3G-Series product family but with enhanced overall performance.

M3GB700515T Features

* Total Dose > 200 kRads(Si) typically usable to > 300 kRads(Si)
* SEE Hardened to LET up to 82 MeV
* cm2/mg
* Internal EMI filter
* Low Weight < 100 grams
* Magnetically Coupled Feedback
* 60V to 120V DC Input Range
* Up to 40W Output Power
* Triple Output Models I

M3GB700515T Applications

* such as geostationary earth orbit satellites and deep space probes. They exhibit a high tolerance to total ionizing dose, single event effects and environmental stresses such as temperature extremes, mechanical shock, and vibration. The converters incorporate a fixed frequency single ended forward t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M3GB700515T, M3GB700512T. Please refer to the document for exact specifications by model.

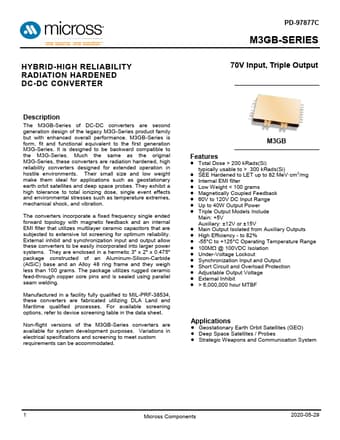

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M3GB700515T, M3GB700512T
Manufacturer
Micross
File Size
1.46 MB
Datasheet
M3GB700512T-Micross.pdf
Description
HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: M3GB700515T, M3GB700512T.
Please refer to the document for exact specifications by model.
